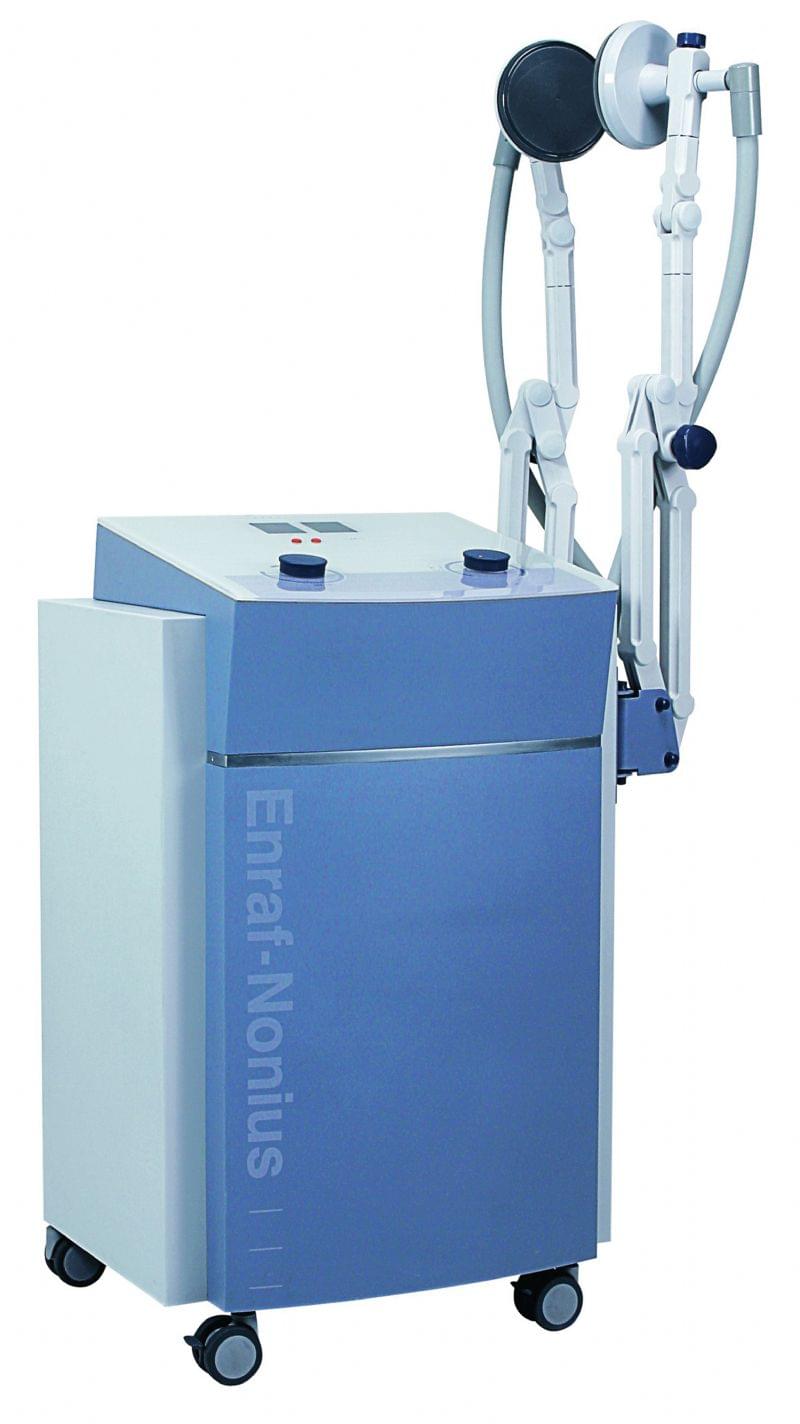

Instrumentation > Diathermy > Short-wave diathermy > CURAPULS 970
Technical specifications
- data is displayed on a light display
- simple controls and easy settings for parameters
- power up to 400 W in continuous mode
- power up to 1,000 W at pulse mode
- acoustic shutdown signal after therapy ends
- option to purchase induction electrodes Flexifetal and Circufetal
- auto-off after discontinuation of therapy
- adjustable position of service arms
- frequency 27.12 MHz
- pulse duration approximately 400 µs
- pulse frequency 15 - 200 Hz, adjustable in 10 steps
- adjustable time 0-30 min
- basic accessories:
- disk capacity electrode Ø 130 mm 2 ks
- 2-piece electrical cable
- Application arm for electrodes 2 pc
- cable holder 2 piece
Optional accessories
- adapter for Circufetus Ø 140 mm
- Circus fruit Ø 140 mm
- Flexiplode
- Flexible rubber electrode 12 x 12 cm
- Flexible rubber electrode 9.5 x 10 cm
- Flexible rubber electrode 15 x 25 cm
- Felt pads for rubber electrodes (by size)
- Disk electrode Ø 130 mm
- Disk electrode Ø 42 mm
- Disk Electrode Ø 85 mm
- Decaying cable, 5 m
