Technical specifications

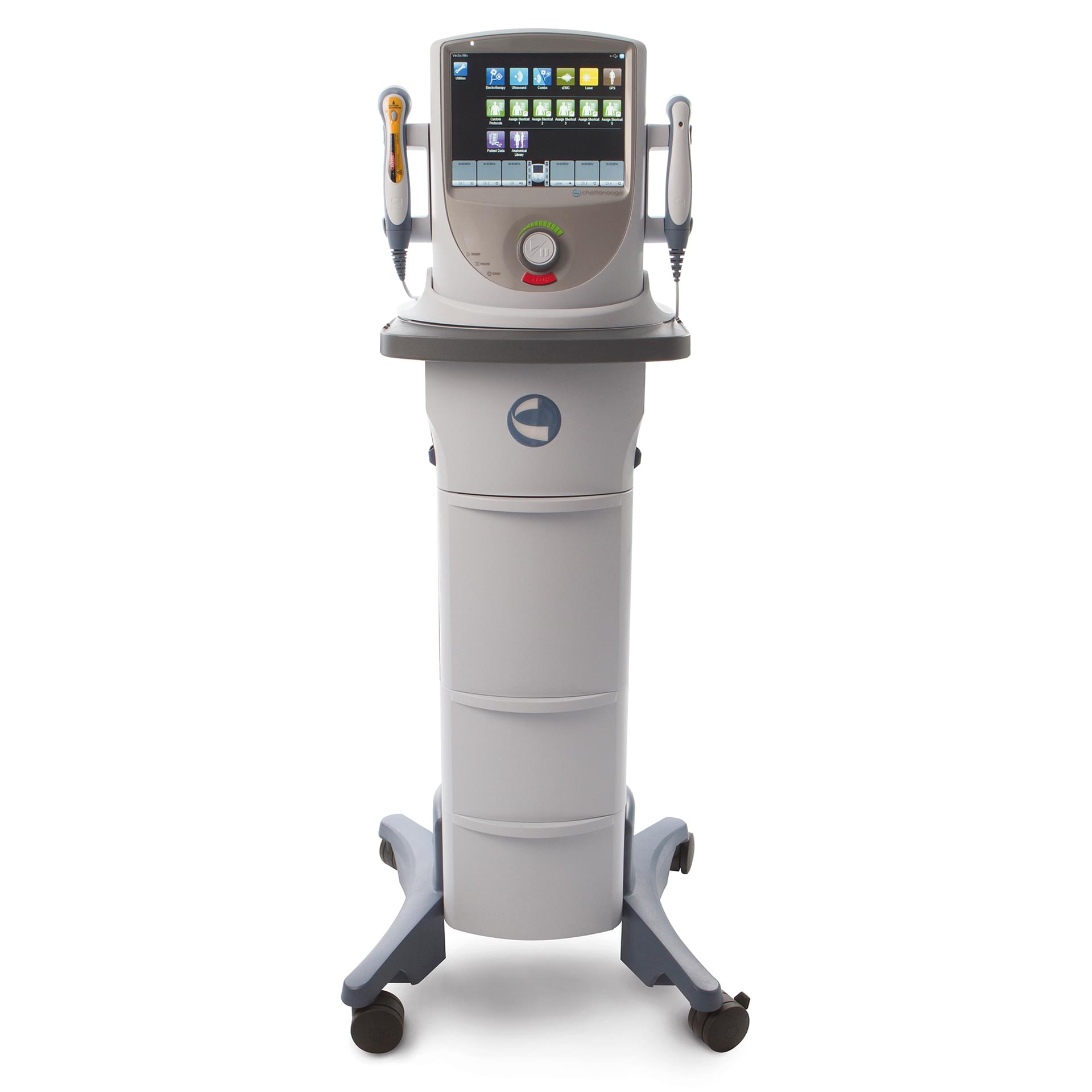

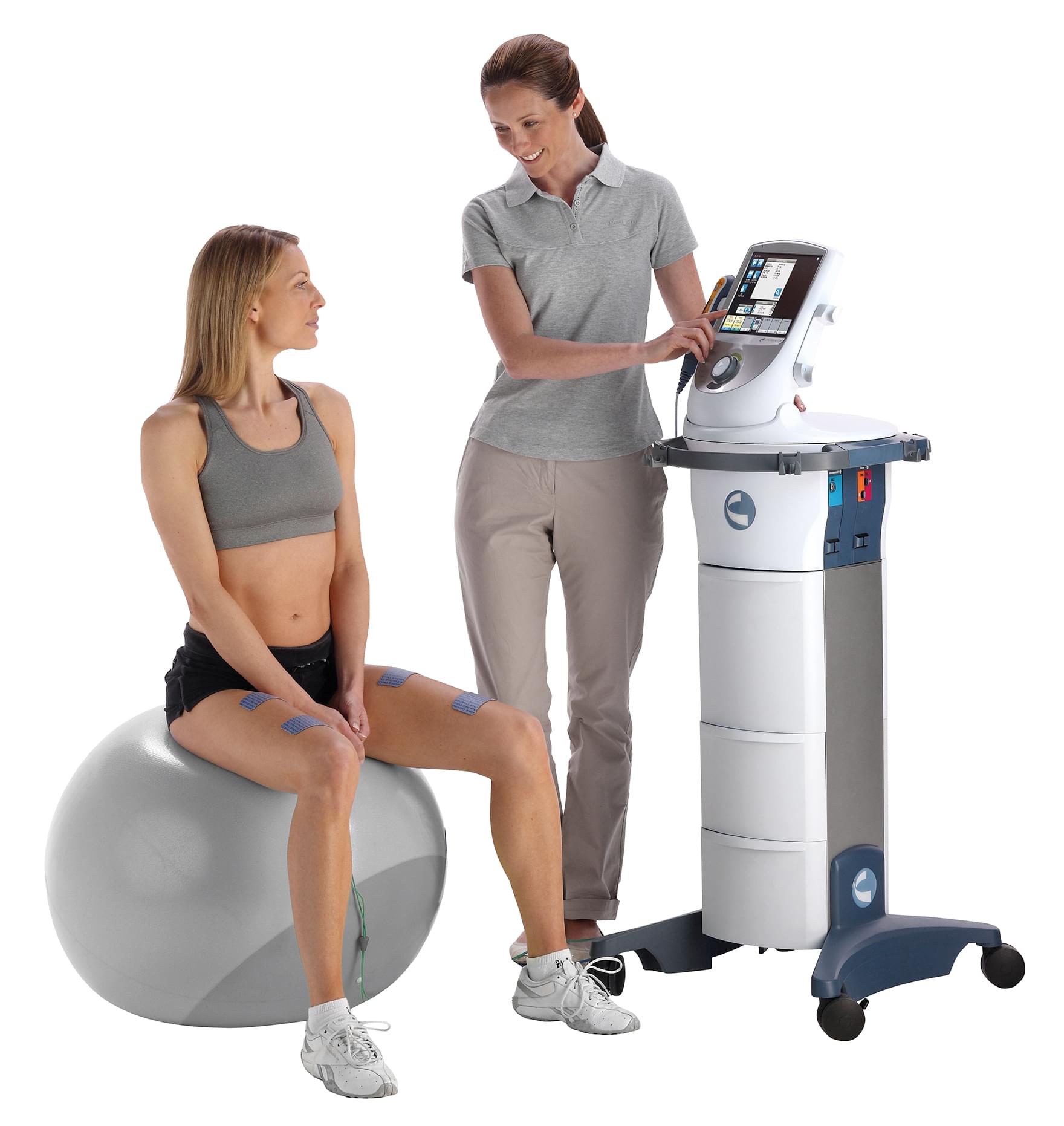

Top physical therapy equipment class
Optional modules for NEO control unit: 1st and 2nd electrotherapy channel, 3rd and 4th electrotherapy channel, EMG electrostimulation module, vacuum unit, therapeutic ultrasound, therapeutic laser

• absolute ergonomics - the display can be rotated and tilted
• option of combining electrotherapy, ultrasound, laser in one device

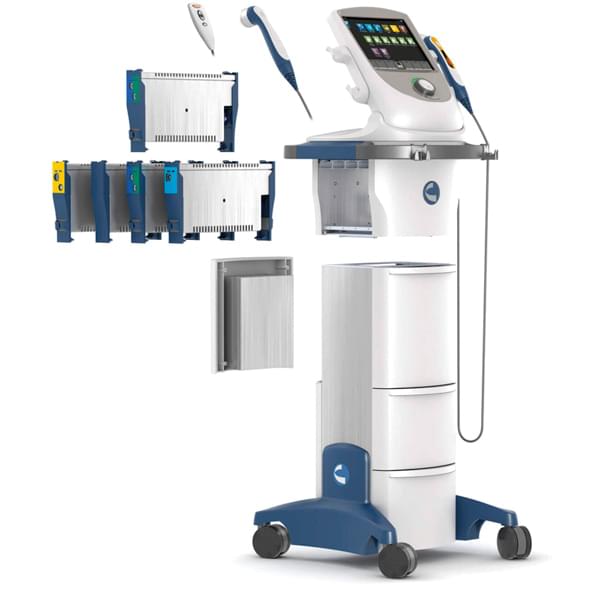

• the system can be folded from individual modules

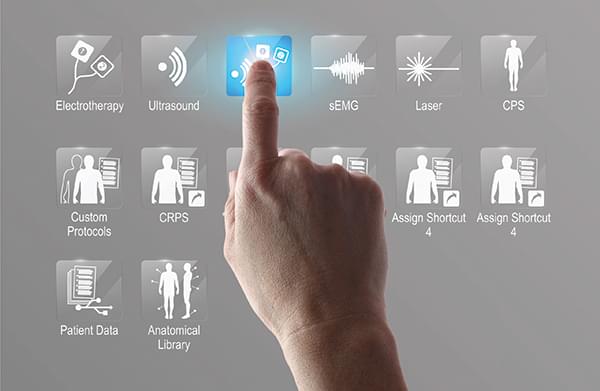

• color 10.4" touchscreen LCD screen
• swivel and tilt instrument head
• ability to transfer data and therapies to USB

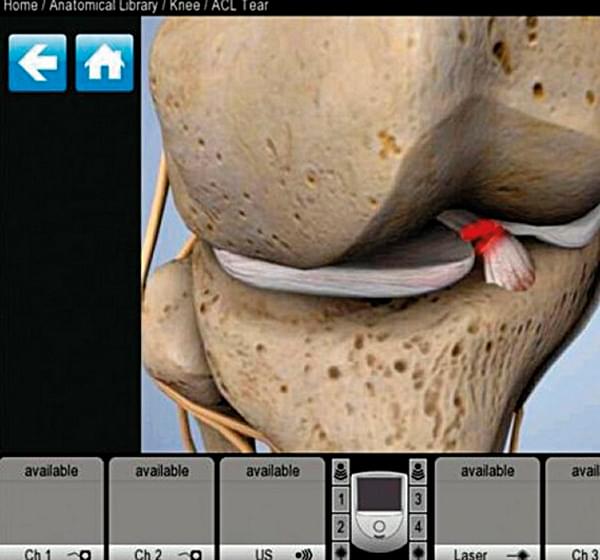

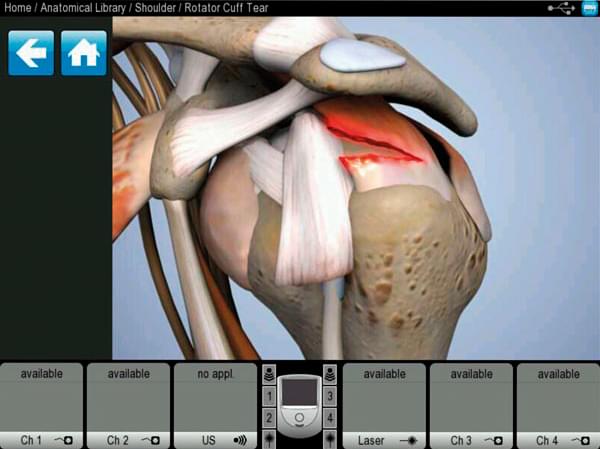

• advanced anatomical encyclopedia
• more than 200 preset protocols
• QUICK protocols
• ability to store their own therapies
• possibility of extension to EMG module with electrostimulation
• tray table with drawers (optional)
• video

Electrotherapy

• more than 30 types of currents: two- and four-pole interference, TENS, Russian stimulation, DD currents, Träbert currents, rectangular and oblique pulses, galvanic current,
  microcurrents, high-voltage therapy, vector field and its modifications, stimulation currents, I/t curve and more
• 2 independent electrotherapy channels with extension option
• unique EMG module with stimulation (optional)
• basic equipment: cables for electrodes, self-adhesive electrodes 5 cm circular (4×)

OPTIONAL MODULES FOR EXTENSION OF THE APPARATUS:

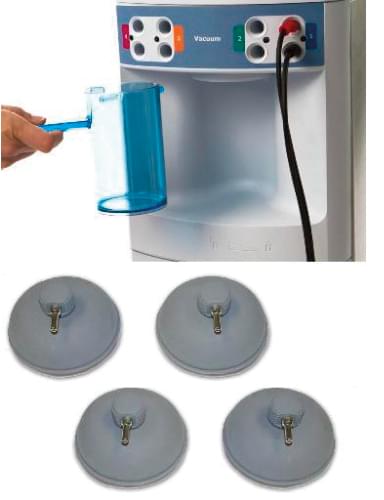

Vacuum unit

• continuous and pulse mode in 10 steps
• ability to set suction intensity up to 600 mbar
• all accessories required for operation
• integrated in the table
• basic equipment: 6 cm (8×) electrodes, 6 cm (8×) sponges, black and grey patient cable

3rd and 4th electrotherapy channel

• basic equipment: rubber electrodes 6×8 cm (4×), cables for electrodes, pads, for electrodes 6×8 cm (4×), self-adhesive electrodes 5 cm circular (4×), nylatex bands

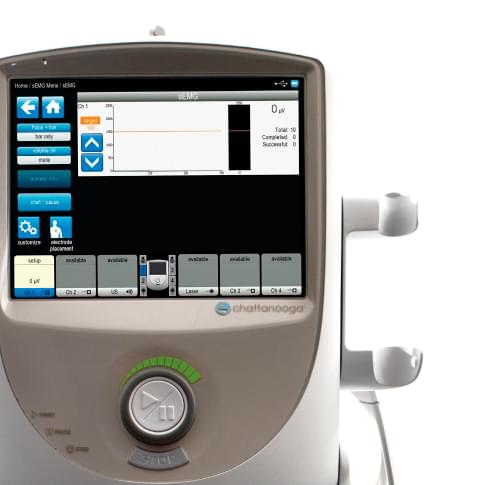

EMG module with electrostimulation

• surface electromyography
• option to combine measurement with electrostimulation
• the system allows advanced diagnosis of muscle activity
• precision feedback of muscle activity responding to stimuli less than 3 μV
• basic equipment: rubber electrodes 6×8 cm (4×), cables for electrodes, pads for electrodes 6×8 cm (4×), self-adhesive electrodes 5 cm circular (4×),
  nylatex bands, intravaginal probe, patient EMG cables (2×)

Therapeutic ultrasound

• multifrequency ultrasonic heads 1 and 3 MHz
• Continuous and Pulse Mode, BNR < 5 : 1
• variable duty factor (16, 48, 100 Hz)
• power up to 3 W/cm2
• acoustic and visual check of warhead contact with patient
• preheated contact surface of warhead
• warheads 5 cm2 (optional 1 and 2 cm2)
• option of combination therapy with electrical therapy

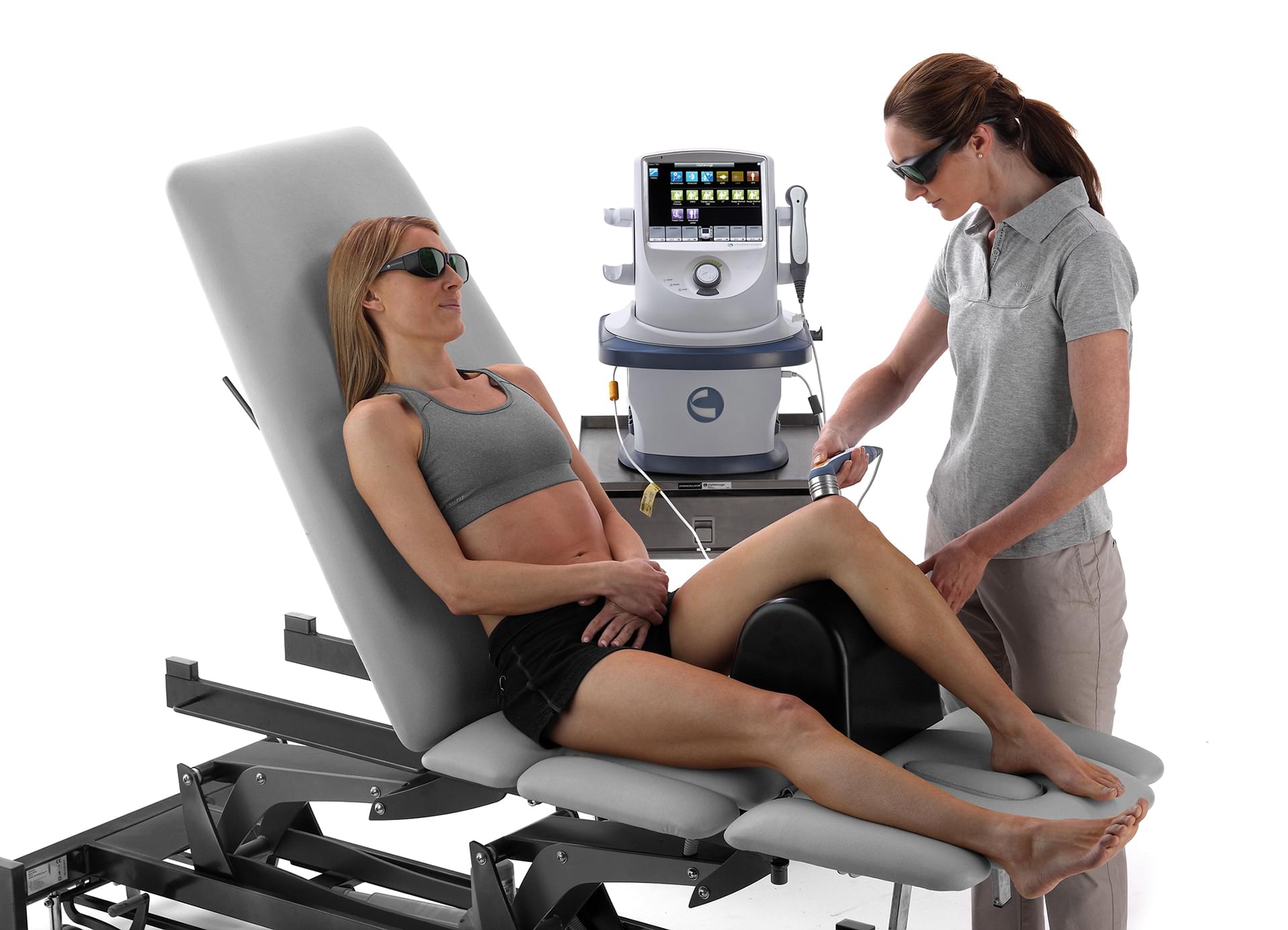

Therapeutic laser

• both continuous and pulse mode
• 17 different laser probes and showers (red, infrared and combined)
• variability in parameter settings, display of total energy dose
• pre-diagnoses, acupuncture programs
• built-in acupuncture point finder
• option to connect up to 33-diode laser shower
• basic equipment: goggles (2×), patient safety button
