Technical specifications

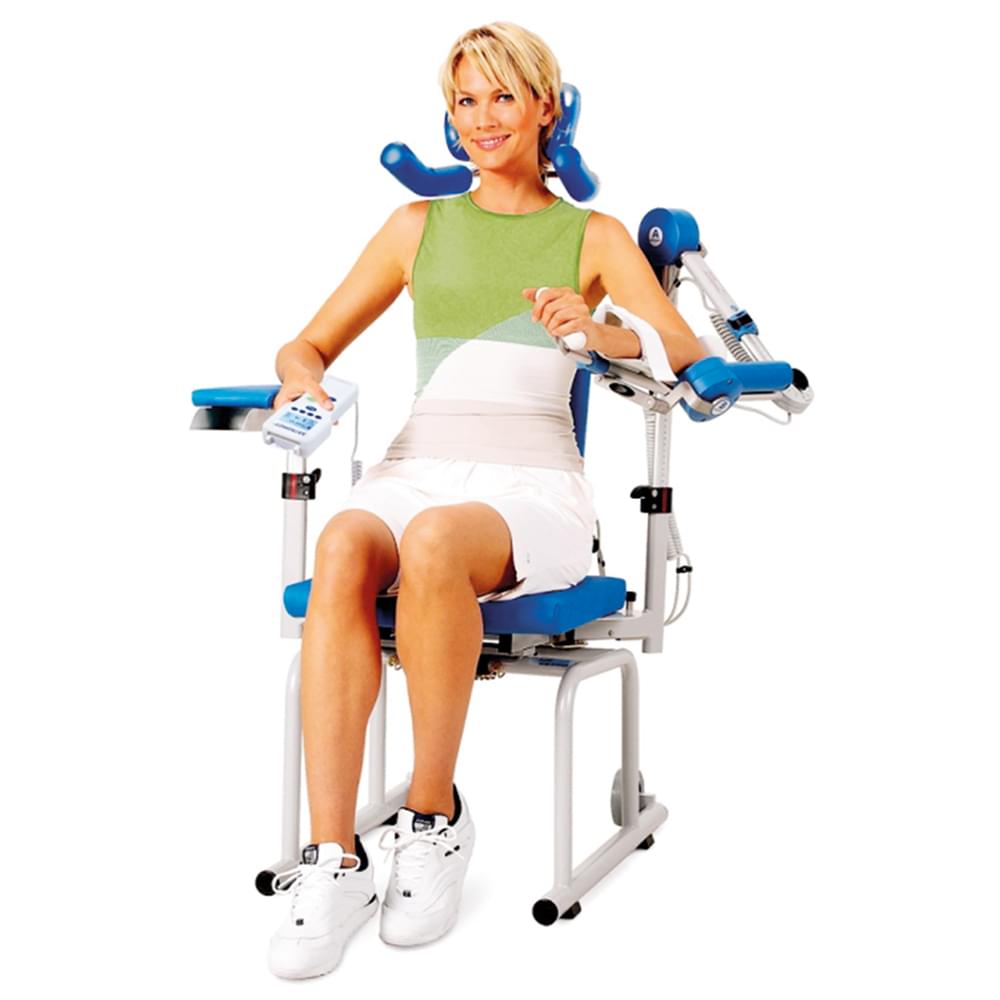

• modern programmable motor splint for CPM shoulder joint therapy
• ability to store patient data on a smart card (monitoring the course of rehabilitation)
• possibility to transfer treatment data from smart card to PC
• easy to control - simple display with images
• possibility of rebuilding for left- and right-hand rehabilitation
• abduction/adduction 30°-175°
• 90°-0°-90°
• elevation (flex) 30° - 175°
• anteversion/retroversion - manual 0° - 120°
• speed up to 200°/min
• exercise time setting 1-300 min
• 25 kg
• dimensions (d × w × v) 580 × 575 × 875 mm
  Special Prayer Programs
• incremental increase in range of motion - warm-up program
• oscillations - more frequent repetitions of limit 10°
• stretch - slow increase in maximum range of motion by 5°
• safety feature - reverse
• pauses in extreme positions - both separately optional 0-59 s / 1-59 min
• asynchronous engine running
• isolated movements - one of the engines can be switched off

Indications

suitable for treatment of most shoulder joint injuries
shoulder distortions and contusions
operated fractures, pseudoarthrosis
implants of prostheses
tumour surgery in the shoulder area
joint mobilisation under anaesthesia
